Understanding Electrical Wiring Colours in Australia

Australian electrical wiring colours in Australia employ colour codes as a key safety feature for those working on circuits. The visual identification system lets users quickly understand the wire functions as live, neutral and earth. Uniform colours prevent errors during installation and maintenance.

However, Australian standards have been modified over time. Australian wiring colours from past systems differ from those used in current standards. When using out-of-date information, it becomes possible to reach unsafe analytical conclusions.

Tradespeople and DIY enthusiasts require knowledge of standards from past and present times. This facilitates well-informed and secure electrical work, especially when understanding the colour of electrical wires in Australia.

We will clarify Australia’s former and present wiring colour standards to enhance safe electrical practices because grasping the precise meaning of each color code for electricity is paramount especially in fault finding situations.

Furthermore, we will cover specific applications such as wiring red black green brown blue wires and address the crucial aspects of live neutral wire colours and what colour is earth wire within wiring colours.

Understanding the Electrical Wiring Colour Code

Knowledge about Australian electrical wiring colours work regulations remain limited to licensed electricians because different international nations use varying wire colour schemes. The existing AS/NZS 3000:2018 standard has established European and UK wiring practices but identifies older wiring systems as potentially hazardous to maintain.

According to modern colour standards, the wire used for neutral should be blue, but some houses still contain hazardous blue wires. This highlights the importance of understanding Australian wiring colours and electrical wire colours in Australia.

The worldwide variation in electrical wiring colour codes makes it dangerous for electrical work. Having a standardised electrical wiring colour system in Australia proves crucial for installation safety and maintenance operations, and protecting against wrong judgments made by unskilled workers.

Professional electricians thoroughly understand how to do safe electrical work because they have acquired the required training, expertise, and understanding of the colour of electrical wires in Australia.

Before 2018, Australian wiring standards used different wiring colours:

• red for active (live);
• black for neutral;
• green for the earth.

Due to their nature, the electrical danger from active wires becomes extremely severe. Neutral wires complete the circuit, and earth wires create a protective ground path to ensure safety during electrical failures.

Importance of Wiring Colours

The complicated electrical installation domain depends fundamentally on wiring colours, as they are standard communication elements that guarantee safety and effectiveness. Every electrical installer and home renovator needs essential knowledge about the colour of electrical wires in Australia. This is because electrical cable colours in Australia are standardised to prevent potentially dangerous mistakes.

Role of Colour Coding in Electrical Safety

The primary purpose of Australian electrical wiring colours is to indicate each wire’s function.

The wiring colour scheme represents a safety system that the designers specifically developed. For example, knowledge about the colour of earth wire enables proper grounding, which prevents electrical shocks from occurring. At the same time, correct circuit installation depends on understanding live, neutral wire colours because it helps prevent short circuits and fires.

Specifically, when dealing with 240v wire colours in Australia, adhering to the established standards becomes even more critical. Australian wire colours provide a means to easily identify conductors such as active (live), neutral, and earth conductors.

How Colour Codes Help Electricians and DIY Enthusiasts Avoid Mistakes

Australian wiring colours are a fundamental part of electricians’ training. These colours allow professionals to recognise wires quickly in complicated wiring situations or during maintenance. Electric wire colours in Australia enable personnel to locate circuits, fix problems like fixing power outages, and validate network connections safely.

Even house wiring wire colours must be understood by all do-it-yourself residents who perform basic electrical work. Proper identification of wiring colours should include understanding the configuration of wiring red, black, green, brown, or blue wires to avoid expensive and safety-threatening mistakes. Clarity is key for house wiring colours.

Colour coding for electricity provides a clear method for safety and efficiency. This is especially important when dealing with three-phase colour coding, which is critical for industrial and commercial applications.

Legal and Safety Implications of Incorrect Wiring

The improper joining of wires caused by misinterpretation of wiring colours in Australia and disregard for local Aus wiring colour standards leads to critical safety and legal consequences. In Australia, adherence to the Australian electrical wiring colours is mandated by safety regulations. Non-compliance results in monetary penalties and potential legal matters, which are accompanied by most critically dangerous accidents and fatal outcomes.

Incorrect wiring can lead to:

• Electric shocks: Misidentifying the live wire can result in severe or fatal electric shocks.
• Fires: Wrong electrical connections will produce overheating along with short circuits, leading to fire risks.
• Equipment damage: Misconnected Electricity systems will damage electrical equipment and household appliances.
• Legal penalties: Any failure to follow electrical safety standards exposes users to possible legal penalties.

The established wiring colour codes must be accessible and followed by everyone who works on domestic tasks and industrial projects. This enables safer installations, like lighting or powerpoint installations, and maintains operational efficiency and legal requirements. Always find electricians whose electrical services always adhere to standards like Dynamic Group.

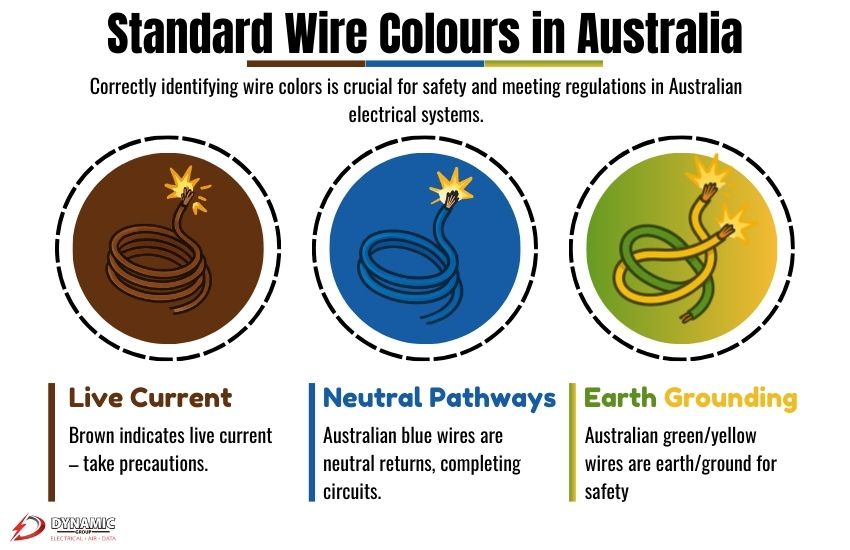

Current Standard for Electrical Wire Colours for AC

Accurate identification of electrical wire colours is crucial for electricians and homeowners to maintain safety and adhere to regulations when working on Australian electrical systems.

Brown Wires – Live Current

The electrical networks in Australia utilise brown wires to deliver high-voltage live power that risks death by electrocution. Due to this danger, extreme caution is necessary when handling them. For safety, brown wires are always connected last during installation or repair and disconnected first when powering down. Identifying brown wires immediately signals to electricians that live current precautions are required.

Blue Wires – Neutral Pathways

Blue wires are used in electrical circuits as neutral return conductors, closing the circuit to the power source. Touching a blue neutral wire becomes safe immediately after power termination because it lacks the lethal high voltage found in brown live wires. The blue colour facilitates quick visual identification of neutral wiring.

Green/Yellow Wires – Earth Grounding

The combination of green and yellow elements on wires serves as grounding for earth protection against electrical system failures. Appliances that malfunction attempt to send currents through people find these wires as their path to the ground, eliminating shock and electrocution risks. These green/yellow earth wires are a critical protective component of Australian electrical standards.

Wiring Colour Codes for DC Systems

Understanding wiring colours is paramount for electrical safety, whether dealing with Direct Current (DC) or Alternating Current (AC) systems. While Australian electrical wiring colours are standardised for AC systems, DC systems have their conventions, which are also important to recognise.

DC Wiring Colour Codes

In DC systems, a simplified colour scheme is often employed:

• Positive (Live): Red. This colour indicates the positive conductor, carrying the current from the power source.
• Negative (Neutral): Black. This colour denotes the negative conductor, completing the circuit.
• Earth: Green/Yellow. Like AC systems, green/yellow is universally used for the earth or grounding conductor.

Differences Between DC and AC Colour Codes

It’s crucial to distinguish between DC and AC wiring colours in Australia. While the green/yellow earth wire remains consistent, the live and neutral wire colours differ significantly.

• AC Systems (Australia):
  • Live (Active): Brown (single phase), Red, White, Blue(3 phase)
  • Neutral: Blue (single phase), Black (3 phase)
  • Earth: Green/Yellow.
• DC Systems:
  • Positive: Red.
  • Negative: Black.
  • Earth: Green/Yellow.

This distinction is vital to prevent confusion and ensure safe electrical installations. For example, using house wiring colour knowledge from an AC setting in a DC setting could create a dangerous situation.

Check here for more differences between AC vs DC.

Special Wiring Colours and Uses in Australia

Within Australian electrical wiring colours, specific colours beyond the standard live, neutral, and earth are used for specialised applications.

• Grey, White, and Other Colours:
  • Colors in electrical installations usually indicate particular purposes of use.
  • Such codes are commonly utilised within 3 phase colour coding systems to identify particular phase wires or control wires.
  • Specific equipment may also utilise these colours for internal wiring.
• Use of Blue/Black:
  • Blue and black wiring colours have specific applications in certain installations, particularly industrial ones.
  • They are sometimes used for control circuits or wiring specific equipment, such as air-conditioning and other industrial equipment.
  • In some older 3-phase systems, Black is used as a phase colour.

The colour of electrical wires in Australia can change depending on the installation type. Understanding Australian wire colours is key to safe installations.

Electric wire colours in Australia can vary by application. Aus wiring colours are important for all electricians.

Electrical Wiring for Specific Appliances in Australia

When dealing with electrical wiring for specific appliances in Australia, it’s essential to recognise that wiring colours can deviate from standard general-purpose circuits.

Stoves, ovens and warm water systems may use special Australian wire colours that vary from other standard designs.

• The thick nature of cables used for high-current appliances must match the standards of distinctive patented connection systems found inside such appliances.
• The safety and functionality of these devices depend entirely on strict adherence to instructions provided by appliance manufacturers during wiring operations.

A significant distinction is how the colour of electrical wires in Australia differs between single-phase and three-phase circuits.

• For single-phase house wiring colours, brown and blue are standard for active and neutral, respectively, with green/yellow consistently used for earth.
• Three-phase circuits, commonly employed for high-power appliances, utilise distinct three-phase colour coding, often incorporating red, white, and blue. Older systems may use Red, White, and Black as phase colours.
• High-power three-phase circuits need distinct 3 phase colour coding that mainly consists of red, white, and blue or occasionally uses red, white and black for colour codes.
• Devices for three-phase power possess built-in wiring systems to operate with that particular system.
• Working with 240v wire colours in Australia is normally a single-phase installation, but it can be one phase of a three-phase system.

Consequently, a thorough understanding of Australia wiring colours for single-phase and three-phase is paramount. Remember that electric wire colours in Australia are subject to Australian standards, and it is crucial to always consult the appliance wiring diagram and relevant Aus wiring colour standards before undertaking any electrical work.

Best Practices for Electrical Wiring in Australia

The key elements of electrical wiring safety and standard compliance need absolute prioritisation regardless of whether you are a homeowner or a DIY enthusiast. Correctly understanding wiring colours forms an essential safety base for executing electrical work.

Tips for Homeowners and DIYers:

• Always Disconnect Power: Before wiring work, ensure the power is completely disconnected at the main switchboard.
• Know Your Colours: Familiarise yourself with Australian wire colours, particularly house wiring colours and 240v wire colours.
• Use Correct Tools: Use insulation-laid tools built for electrical tasks.
• Follow Standards: Adhere to Aus wiring colours and relevant Australian standards (AS/NZS 3000).
• When in doubt, call a professional: If you lack absolute assurance in conducting the job, always seek help from a licensed electrician.
• Inspect Regularly: Regular checks should be performed on all visible wires to detect damage.
• Understand appliance wiring: Before wiring appliances, always check the wiring diagram and understand how the colour of electrical wires in Australia may change depending on the appliance.

Safety Tips for Working With or Identifying Electrical Wiring:

• Verify Power is Off: Check with a multimeter or a voltage tester that no power remains active before handling electrical wires.
• Identify Wires Correctly: The correct identification of live, neutral and earth wires depends on your understanding of electric wire colours in Australia.
• Earth Wire Awareness: Always recognise the colour of earth wire (green/yellow) and ensure proper grounding.
• Live/Neutral Awareness: Identify and memorise live, neutral wire colours.
• 3-Phase Caution: You must take maximum safety precautions when operating under 3-phase colour coding systems since these operate with high voltage.
• Avoid Water: Never work with electrical wiring in wet conditions.
• Proper Insulation: Verify that every electrical connection has appropriate insulation.
• Wiring Red Black Green / Brown Blue Wires: Be sure to identify these configurations correctly.
• The proper use of colour code for electricity helps navigate electrical hazards.
